Features
Modular design
Independent functions of the measurement channels
High measurement rates for precise detection
Independent real-time communication of the measurement channels with the machine PLC
Industrial interfaces for automation
Host PC for visualization and operation of the measurement channels

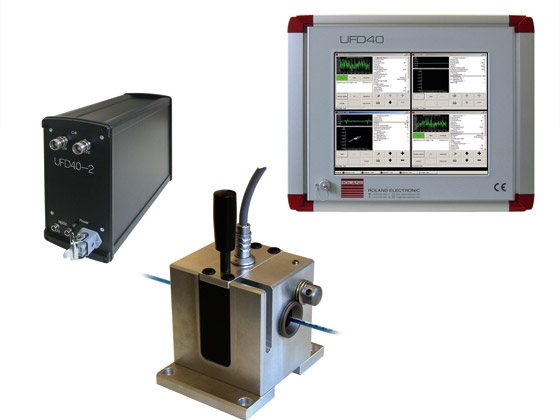

Device variation
- Measurement module with 1 differential channel
- Measurement module with 2 differential channels
Technical data
|
Applications: |
Non contact detection of faults, butt welds and mechanical connections in wires, cables and tubes. |
|
Material and thickness: |
All metals |
|
Measuring method: |
Eddy current measurement |
|
Functional principle: |
When the material transits the sensor, irregularities (faulty spot, connection or seam) will be detected by the changing forming of Eddy currents within the material. |
|
Special features: |
Modular structure by separation of measurement modules and Host PC. |
